Boring tool, Block, Centre drill holder Sleeve Chuck and Collet

Product Details

SHB

Product detail PDF File download

INQUIRY

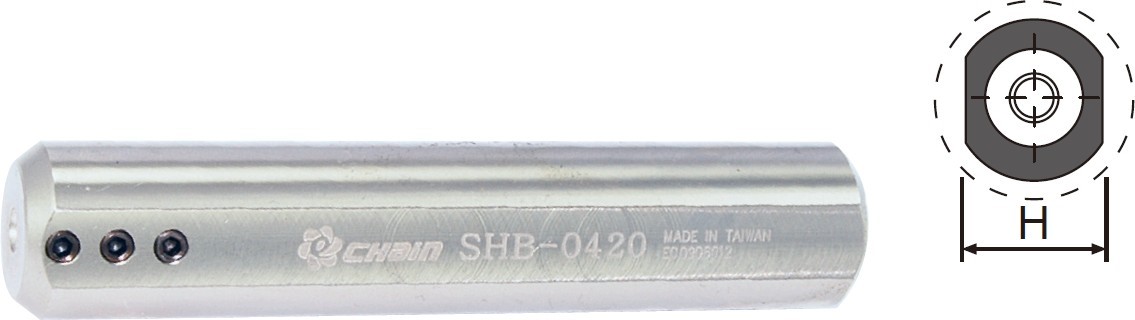

SHB

Sleeve｜Shank：Steel

Model No	Stock	Dimension(mm)				Assembly Holder	Screw	Wrench

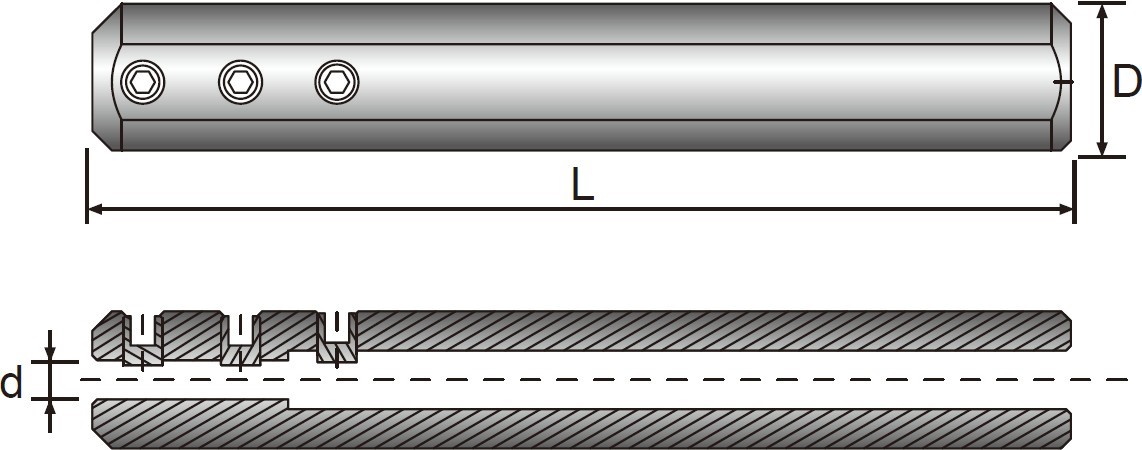

Model No	Stock	ØD	Ød	L	H	Assembly Holder
SHB-0316		16	3	100	15		ES-306	LW015
SHB-0416		16	4	100	15	C04	ES-404	LW020
SHB-0516		16	5	100	15	C05	ES-404	LW020
SHB-0616		16	6	100	15	C06	ES-404	LW020
SHB-0816		16	8	100	15	C08／S08	ES-606	LW030
SHB-1016		16	10	100	15	C10／S10	ES-606	LW030
SHB-04-19.05		19.05	4	100	18.05	C04	ES-404	LW020
SHB-05-19.05		19.05	5	100	18.05	C04	ES-404	LW020
SHB-06-19.05		19.05	6	100	18.05	C05	ES-404	LW020
SHB-08-19.05		19.05	8	100	18.05	C05	ES-606	LW030
SHB-10-19.05		19.05	10	100	18.05	C06	ES-606	LW030
SHB-12-19.05		19.05	12	100	18.05	C06	ES-606	LW030
SHB-0420		20	4	100	19	C08／S08	ES-404	LW020
SHB-0520		20	5	100	19	C08／S08	ES-406	LW020
SHB-0620		20	6	100	19	C10／S10	ES-406	LW020
SHB-0820		20	8	100	19	C10／S10	ES-606	LW030
SHB-1020		20	10	100	19	C12／S12	ES-606	LW030
SHB-1220		20	12	100	19	C12／S12	ES-606	LW030
SHB-0422		22	4	100	21	C04	ES-406	LW020
SHB-0522		22	5	100	21	C05	ES-404	LW020
SHB-0622		22	6	100	21	C06	ES-406	LW020
SHB-0822		22	8	100	21	C08／S08	ES-606	LW030
SHB-1022		22	10	100	21	C10／S10	ES-606	LW030
SHB-1222		22	12	100	21	C12／S12	ES-606	LW030
SHB-1622		22	16	100	21	C16／S16	ES-606	LW030
SHB-04-25.4		25.4	4	100	24.4	C04	ES-404	LW020
SHB-05-25.4		25.4	5	100	24.4	C05	ES-406	LW020
SHB-06-25.4		25.4	6	100	24.4	C06	ES-406	LW020
SHB-08-25.4		25.4	8	100	24.4	CS08/S08	ES-606	LW030
SHB-10-25.4		25.4	10	100	24.4	C10/S10	ES-606	LW030
SHB-12-25.4		25.4	12	100	24.4	C12/S12	ES-606	LW030
SHB-16-25.4		25.4	16	100	24.4	C16/S16	ES-606	LW030
