Product Details

CC-AMC

INQUIRY

Material	Steel、Stainless steel、Iron cast
Shank(mm)	n(min)	Vf(mm/min)
6	3700	400
8	2800	500
10	2200	650
12	1900	650

CC-AMC

V-Type Chamfer Cutter Carbide End Mill

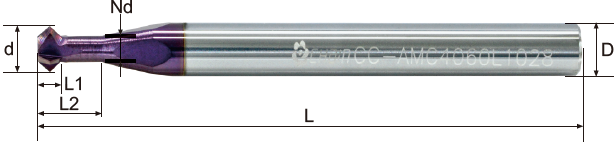

Model No	Diameter (d)	Flute Length (L1)	Length of Neck (L2)	Neck Diameter	Shank Diameter (D)	O.A.L.(L)	INO
CC-AMC4060L1028	6	2.8	7	2.8	6	60	4
CC-AMC6080L1038	8	3.8	9	3.8	8	60	6
CC-AMC6100L1048	10	4.8	11	4.8	10	75	6
CC-AMC6120L1058	12	5.8	13	5.8	12	75	6

Side Chamfering	Back Chamfering	Side V Groove Processing

*Reserve the right to modification due to technical requirements.
*Please refer to the physical product.
