Product Details

S-EMM 2000

INQUIRY

Material	Steel、Stainless steel、Iron cast
Shank(mm)	n(min)	Vf(mm/min)
Shank(mm)	n(min)	Slotted	Side
4	4800	135	475
Depth (D：F.D)

S-EMM 2000

Micro Diameter
2 Flute End Mill

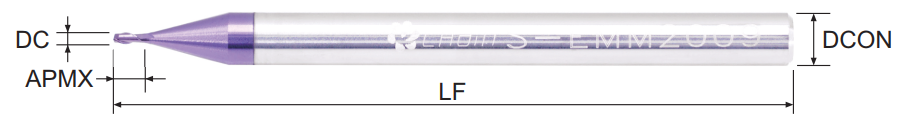

Model No	Diameter (d)	Flute length(L1)	O.A.L.(L)	Shank Dia (D)
S-EMM2002	0.2	0.4	50	4
S-EMM2003	0.3	0.6	50	4
S-EMM2004	0.4	0.8	50	4
S-EMM2005	0.5	1.0	50	4
S-EMM2006	0.6	1.2	50	4
S-EMM2007	0.7	1.4	50	4
S-EMM2008	0.8	1.6	50	4
S-EMM2009	0.9	1.8	50	4

*Reserve the right to modification due to technical requirements.
*Please refer to the physical product.
